GOLF – Layout Solution

GOLF is a production-proven OpenAccess-based layout platform adopted
by world-class companies of fabless design, layout and design service,
semiconductor foundriesand flat panel display manufacturers.
GOLF features powerful layout viewing and editing functions, intuitive GUI,
flexible customization and more extension, with both simplicity in GUI and
flexibility in design flows. Its API with C++/TCL/PERL/PYTHON interface
(and more on demand) helps users developing a variety of applications.

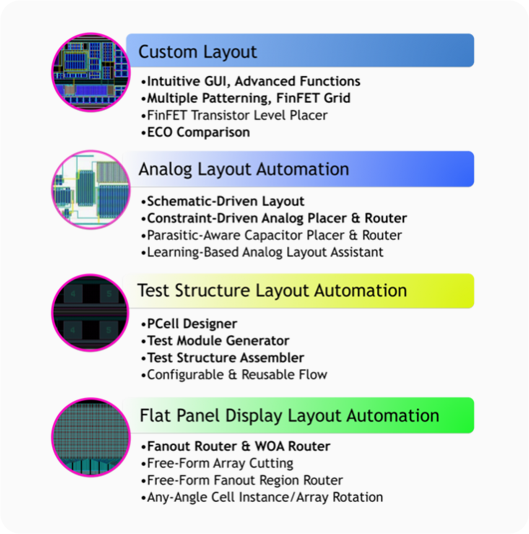

GOLF capabilities facilitate great customization for different applications,
such as custom layout functions, analog layout automation
(schematic or constraint-driven layout, etc), testchip structure layout automation
(from PCell designer to IP block/component and to chip-level layout)
or panel-level layout integration and automation.

Thunder – Layout Viewer

THUNDER is a versatile layout integration platform to support heavy layout handling efforts from post P&R, IP merge automation &management,
physical ECO verification (XOR LVL, connectivity, etc), DRC/LVS debugging interface, and even (in-line inspection) defect-to-layout mapping, failure analysis and chip-package integration (interposer vs. InFO RDL-routing, pins connectivity, etc). ThunderDB is the proprietary database and is efficient to handle huge layout data with the extreme performance of up to 600+GB GDS equivalent per minute. Users can then perform big data analysis for further processing (e.g. 3D-view, cross-section, density mapping, wafer map), machine-learning based optimization, and manipulating data from GDS, OASIS, LEF/DEF, MEBES, OpenAccess and 3rdparty tools output.

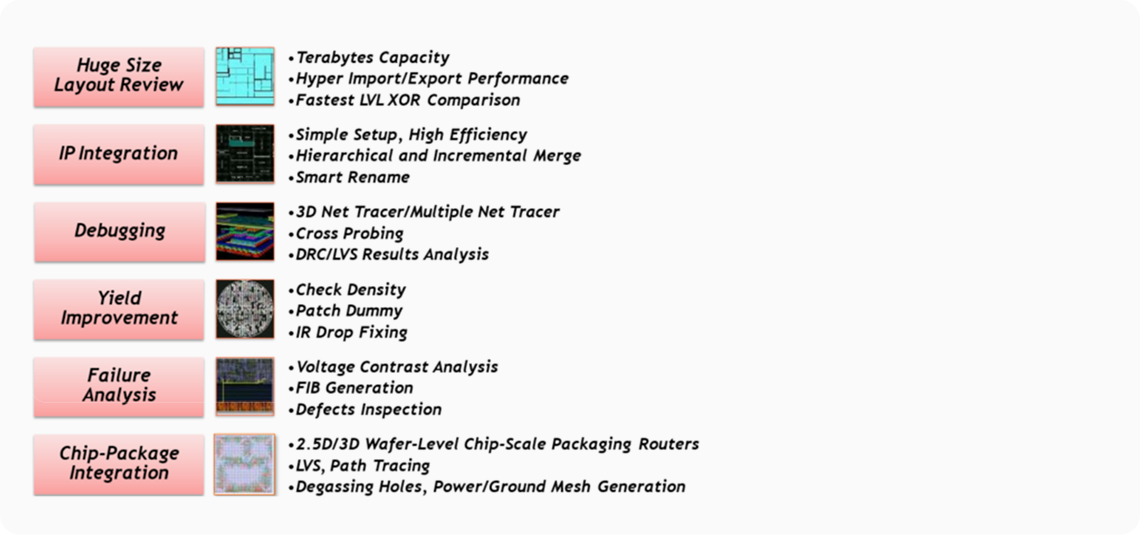

HIGHLIGHTS
